產品名稱：SZG9020-A Lavatory Water Car 產品編號： 點擊次數：2374次

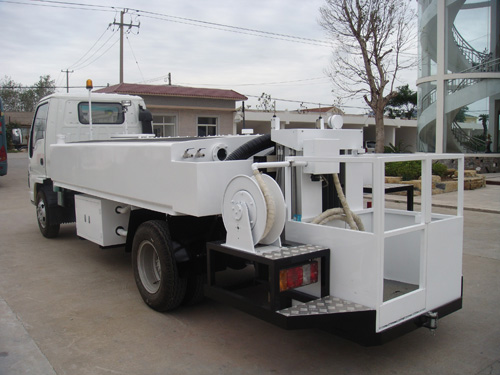

SZG9020-A Lavatory Water Car    編號：
產品描述：


DESCRIPTION



TheSZG9020-A series is designed for providing clean water for the aircraft and taking the dirty water away, all the components are all made of stainless steel, the engineers adopt advanced techniques and do some improvement to make the car can be normally used in bad weather and ramp station, so this series can shorten the retention time of the aircraft, reduce the maintenance cost and improve the economic benefit. All operating control of water pump can be used in an safety environment behind the lift platform. This series of equipment can provide service height is 5 meters (lifting height to 2.8 meters). It meets the international aviation regulations of common standards and requirements.

DIMENSION
Tare
4020kg
Total Weight
7270kg
Tank Volume
Sewage Tank Volume：2200L
Clean Tank Volume：1000L
LXWXH
6960X1980X2160mm
Wheelbase
3815mm
Ground Clearance ：
2800mm
Turning Radius
6400mm
Max.Speed
40km/h
Front Suspension/Rear Suspension
1015/2049


TRACTR CONDUCTOR SPECIFICATION

Engine BrandI         SUZU

Engine Model         4KH1-TC Diesel

Transmission         MSB-5M

Chassis Model        NKR77PLPACTAY

Transmission Type    5forward ,1 back, manual transmission

Front Axle Load       2640kg

Rear Axle Load        4550kg

Brake system(driving)  Vacuum booster dual-circuits power hydraulic brake system

Brake system(parking)  The central control, manual, drum Steering system        hydraulic power steering system

Tire                 7.0-16LT

Diesel Fuel Tank Volume 100L

Hydraulic Oil Tank       80L

Max Power              96KW/3400rpm

Max Torque             280Nm/2000-1700rpm



Hydraulic Oil Pump    50l/min, gear pump, flow pressure 20. 6 mpa

Hydraulic Motor       Displacement of 12.6 mL/r, speed 2950r/min, pressure is 20.6 Mpa

Fresh Water Pump          Stainless steel, centrifugal, flow 136l/min, pressure is 0.44Mpa, the speed of 2950r/min

Water Pipe Connector St ainless steel，3/4”

Water Flow meter    digital

Water Safety Valve    3/4”, Stainless steel or copper

Water Filters          Copper

Warning Light         yellow

Spare Tire             7.00-16LT

Fire Extinguisher       5L
