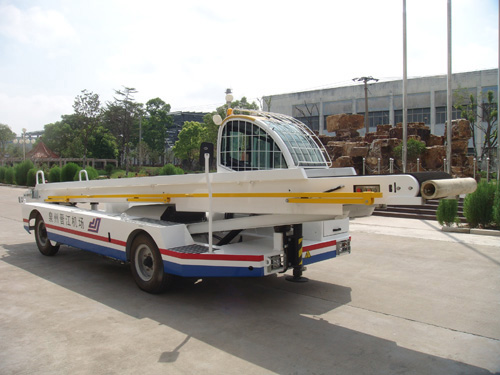

DESCRIPTION
The use of advanced technology at home and abroad, independent research and development. Luggage door for 1.2m to 4.3m high from the various types of aircraft services, up to send the load1050kg. Jiangling optional diesel engine and lmports of automatic teansmission, electric control hydraulic control systems, conveyor rate move - ments, and to support stability, transmission speed adjustable, so that the smooth operation of a belt transmission smooth. Operation simple and flexible, safe, reliable, and easy maintenanace for a wide range of models.
|
DIMENSION |
|
|
Length: 8000mm |
Conveying belt height: Front 4300mm-1200mm |
|
Width: 2120mm |
Conveying belt height: Back 1300mm-540mm |
|
Height: 1510mm(not including driving room) |
Conveying speed: max 30m/min |
|
Weight: 3,350kg |
Conveyor Belt loading capacity: 600-1,050kg |
|
Min Turm Radius:6.5m |
|
TRACTR CONDUCTOR SPECIFICATION
lJX493G（4JB1）four-vat diesel oil generator power 57kw,rotating speed 3600r/min
lMSB-5M Manual gear-box,gear-shift 3-2-1-N-R
lfront bridge-forcibly placed swerve bridge which can load 2700kgs
lback bridge-HF130 forcibly-placed series which can load 3000kgs
lTire-the specification is 7.00-15(enhanced),each one can load 1350kgs,the press is 630Kpa
lVolume of diesel :90 litres
lVolume of hydraulic oil chest:80litres,and is fixed with entry oil saft and
lConveying rack:the standard rack length is 8000mm(alternative is 9000mm),the width is 800mm.the belt width is 700mm,max loading capacity is 1050kgs,max conveying speed is 30m/min,the full width front anti-bumping and the luggage rail are standard device.
lStandard lighting systems-head lamp,back lamp,direction indicating lamp,warning lamp and working lamp |
