Purpose |

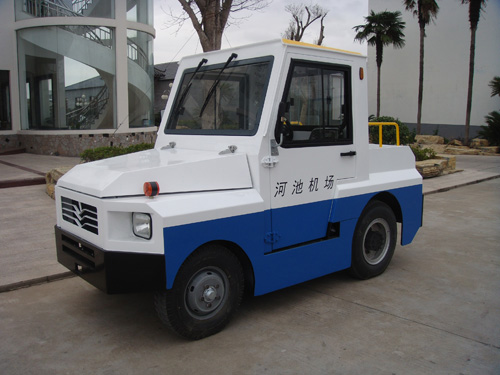

5Designed especially for towing platform trailer & bulk cargo trailer in airport. Max. draft load: 25kn. |
|
Features
Power System |
Engine—JMC JX493G3. Cylinder Number-Bore Diameter×Stroke of Punch— 4-93×102 Displacement Volume—2.771L. Rotational Speed—57kw/3600r/min. Max. Rotational Speed—3600r/min |
|
Drive System |
Hydraulic-Mechanical Transmission. Forward 2 Gears & Backward 1 Gear. Simplest Driving. More Fluent Shift. Max. Speed—30 km/h |
|
Steering System |
Hydraulic Booster Steering System. Easing labor. Improving Efficiency |
|
Running System |
Front Axle—Band Spring Suspension Bogie with Vibroshock. Front Tyre—6.00-13
Rear Axle—Band Spring Suspension Driving Axle. Back Tyre—7.00-15 |
|
Brake System |
Vacuum Servo |
|
Electrical System |
12V Automobile Direct Current Electrical System. 12V/50A Generator. Headlight. Front/Back Directional. Reversing Light. Flashing Caution Light |
|
Outside Measurement |
3500mm×1510mm×1500mm（without cabin） 3500mm×1510mm×1500mm（with cabin） |
|
Total Weight |
3500kg（without cabin）3700kg（with cabin） |
|
Alternative Devices |
Cab, Air-conditioner, Heater Unit |
