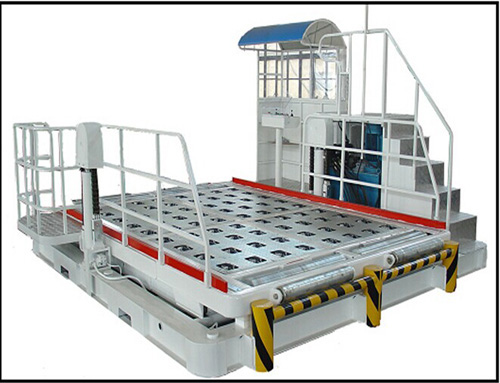

DESCRIPTION
Purpose: Mainly used in airport warehouse and goods control center and solving the problem of the height turnover between container freight train and platform trailer in the platform and container transportation.
Features: The motivity come from 380V AC. The containers which type below Simple AKE(LD3) can rotate in any direction.
|
Dimensions
(length×width×height) |
4280 mm×4380 mm×1450 mm |
no rain shed |
|
work table (length×width) |
4250 mm×2800 mm |
|
|
the highest work table arrive(height away from the ground) |
1600 mm |
|
|
the lowest work table arrive(height away from the ground) |
500 mm |
|
|
work table (full load 7t) |
arise speed 15 sec |
descend speed 10 sec |
|
work table (no-load) |
arise speed 10 sec |
descend speed 15 sec |
|
work table transmission speed |
280 sec |
with adjustable speed device |
|
hydraulic pressure system work pressure |
100-110 Kg / cm2 |
with adjustable pressure device |
|
hydraulic oil brand |
wear-resistant 46# |
|
|
electric system work pressure |
AC380V (electric motor) |
DC 24V (system) |
|
entire vehicle weight |
6100 KG |
theoretical arithmetic (±5%) | |
